Raymarine AXIOM+ 12, MFD 12" Display with Australia and New Zealand LightHouse Charts

RRP: $4,899.00
Cat.No:
46258
Sup. No.
E70638-00
- +
Add to Wish List

Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 percent brighter than the previous generation.

Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.

Seamlessly redraw charts and expand Axiom+ with solid-state radar, and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.

Performance Tuned

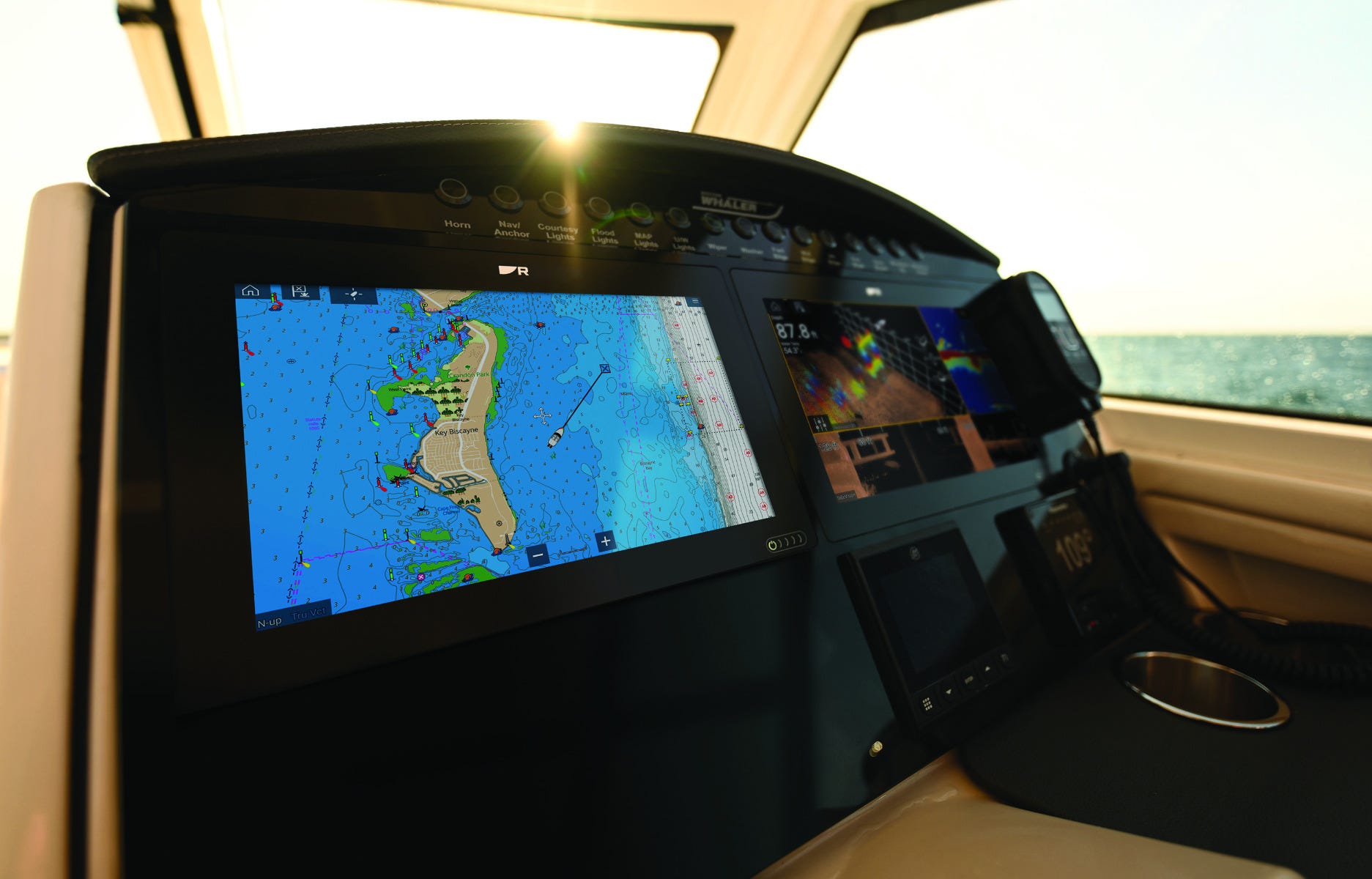

  • Fast and fluid chart redraw of LightHouse, Navionics, and C-MAP electronics charts.
  • Powerful quad-core processor, plus increased onboard storage for personal data and apps.

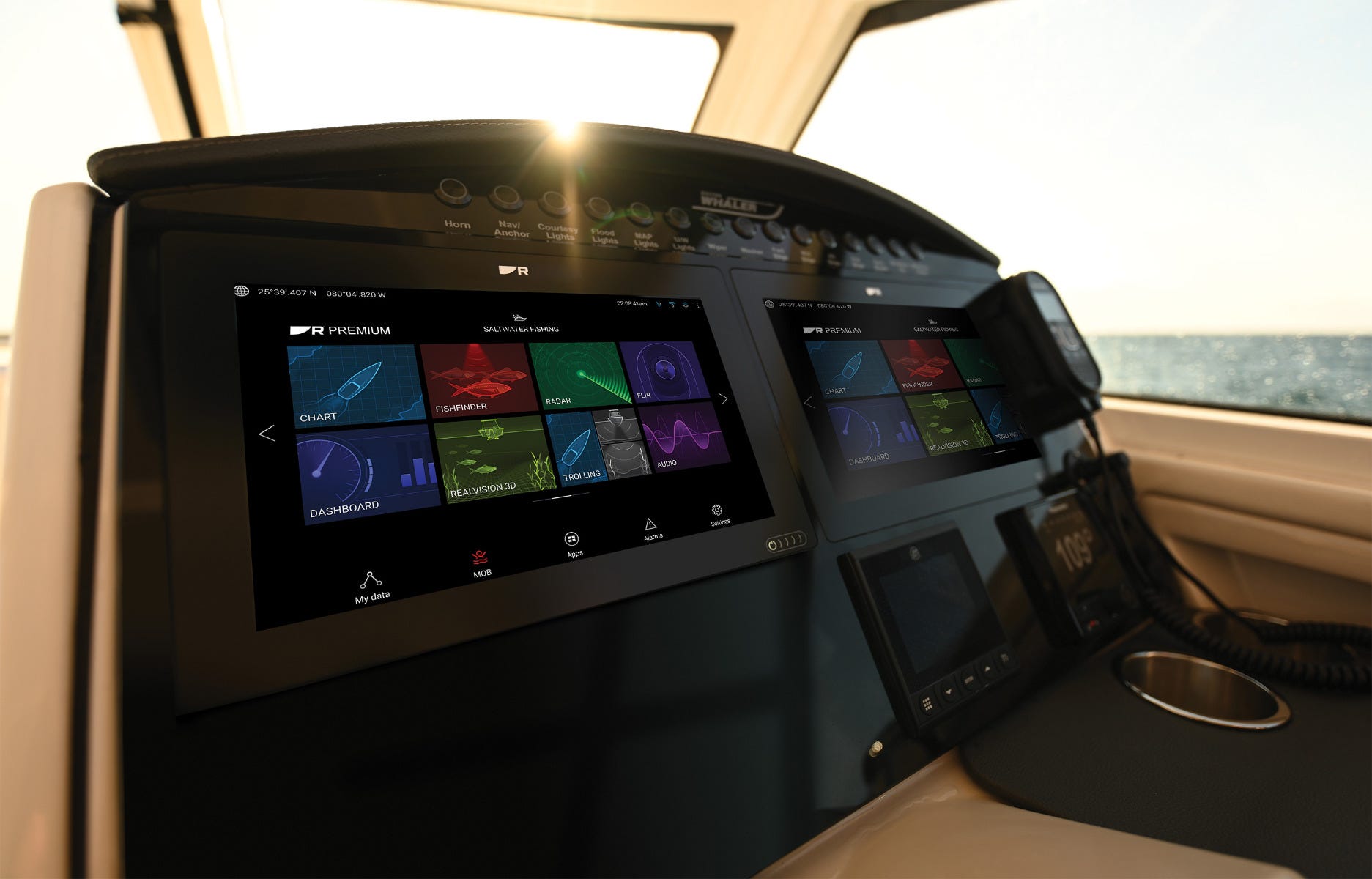

  • Smart and intuitive LightHouse OS makes navigating easy.
  • Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.

Maximum Visibility

  • Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.
  • Improved viewing with new LightHouse color themes, including Day, Dusk, and Night mode.
  • 25 percent brighter (up to 1,800 nits)

HydroToughTM

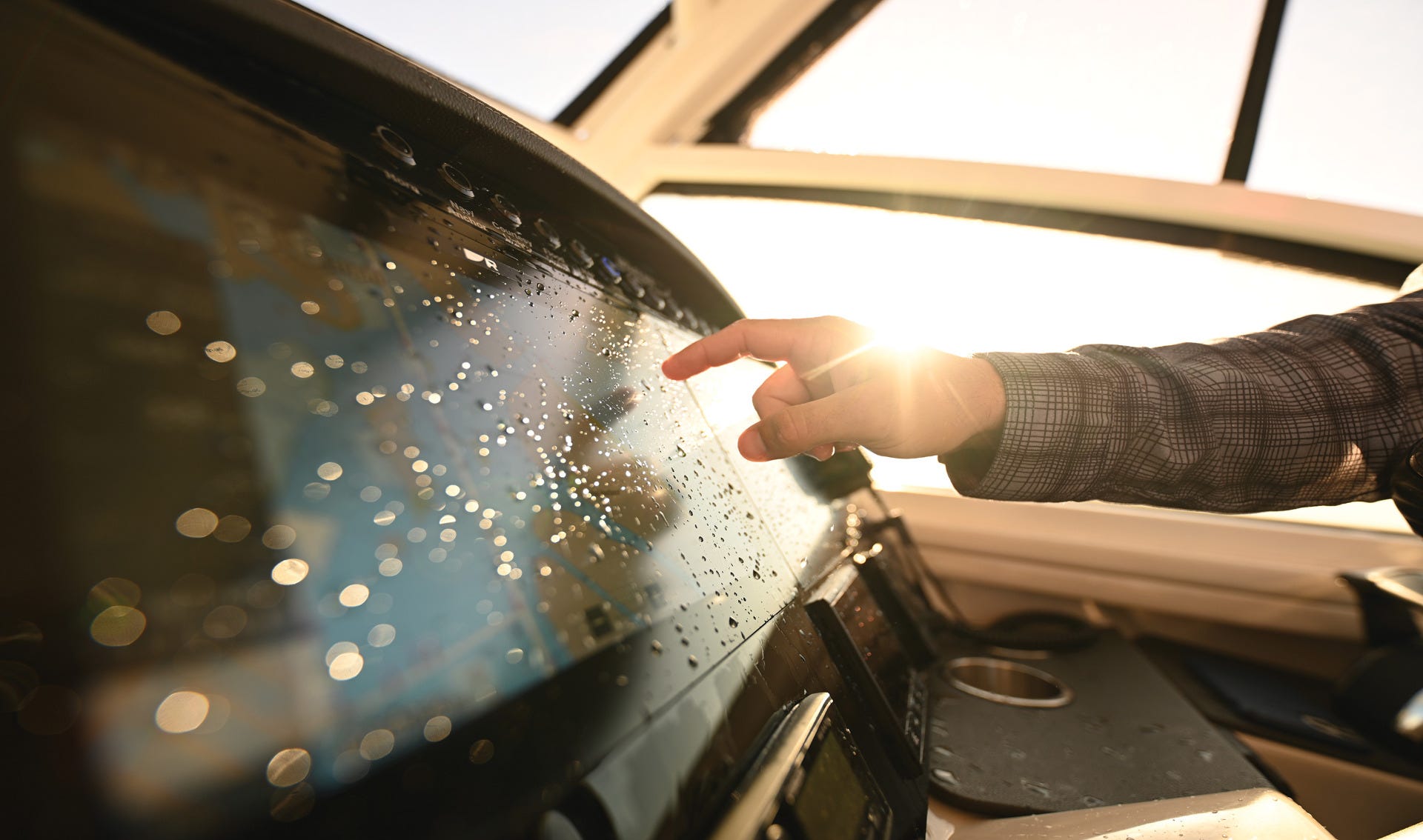

  • Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.
  • All-weather HydroTough technology delivers improved color and contrast and accurate touch controls - even when wet.

Make Smarter Navigation Decisions

  • Add an AIS (automatic identification receiver) and safely navigate busy waterways with AIS target overlays
  • Upgrade to ClearCruise Augmented Reality and visualize AIS targets, navigation aids, and waypoints in high-definition video.
  • Avoid obstacles with optional Quantum and Cyclone radars and Doppler target tracking.
Specifications
Specification

Physical

  • Dimensions (Trunnion mounted) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
  • Dimensions (Surface/Flush mounted) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
  • Accessory connection: USB Micro B
  • Ethernet connection: RayNet (10/100 Mbits/s)
  • External storage: MicroSDXC card slot x 1
  • NMEA 2000 connection: DeviceNet (male connector built into power cable)
  • Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
  • Internal storage: 16 GB Solid State (14 GB usable)
  • Transducer connection: 25-pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
  • Australia and New Zealand LightHouse Chart

LCD

  • Size (diagonal) Axiom+ 12: 12"
  • Resolution: Axiom+ 12: WXGA 1280 x 800
  • Viewing angle: Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
  • Illumination: Axiom+ 12: 1800 nits / 1800 cd/m2
  • Protective coating: HydroToughTM Oleophobic
  • Type: IPS (In-Plane Switching)
  • Colour depth: 24-bit
  • Number of simultaneous touches: 2

Power

  • Power consumption: Axiom+ 12: 18.96 W
  • Operating voltage range: 8 V dc to 16 V dc
  • Fuse rating: 7 A
  • Nominal supply voltage: 12 V dc


Environmental

  • Operating temperature: -25°C to +55°C
  • Storage temperature: -30°C to +70°C
  • Relative humidity: Up to 93% @ 40°C
  • Waterproof rating: IPx6, IPx7

GPS

  • Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
  • Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
  • Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
  • Channels: Track up to 28 satellites simultaneously
  • Antenna: Internal - Ceramic chip mounted near top of unit
  • GNSS compatibility: GPS, GLONASS, Beidou
  • Almanac Update: Automatic
  • Signal Acquisition: Receiver IC Sensitivity
  • Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
  • Operating frequency: 1574 MHz to 1605 MHz
  • Refresh rate: 10 Hz (10 times per second)
  • Time to first fix from cold start: < 2 minutes

What's in the box?

  1. MFD (Chartplotter)
  2. Trunnion bracket
  3. Trunnion knobs x 2
  4. Suncover
  5. Documentation
  6. Panel mount gasket
  7. Rear mounting brackets for 12" display
  8. Threaded studs (M5x58) x 4
  9. Thumb nuts (M5) x 4
  10. Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
  11. DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
