Garmin ECHOMAP Ultra 2 10" Chartplotter 105sv with GT56UHD-TM Transducer

Sup. No.

To order for delivery, please contact your local Mail Order Department as this item is currently out of stock online.

This item is currently out of stock online.

To order, please contact your local Special Order Delivery Department as this item is currently out of stock online.

To order, please contact us for delivery options.

Add to Wish List

With big, crisp, sunlight-readable touchscreen displays, these versatile Chartplotters put a world of fishfinding capability at your fingertips.

With built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.


  • 10″ Touchscreen
  • Supports Livescope Sonar1 and more
  • Built-in Garmin Navionics+ Mapping
  • Wirelessly - share sonar, waypoints and routes2
  • Capture screen recordings to share fish catches
  • Multi-band GPS for improved position accuracy
  • Includes GT56UHD-TM Transducer;
  • Includes Garmin Navionics+™ Australia & New Zealand Mapping


The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products

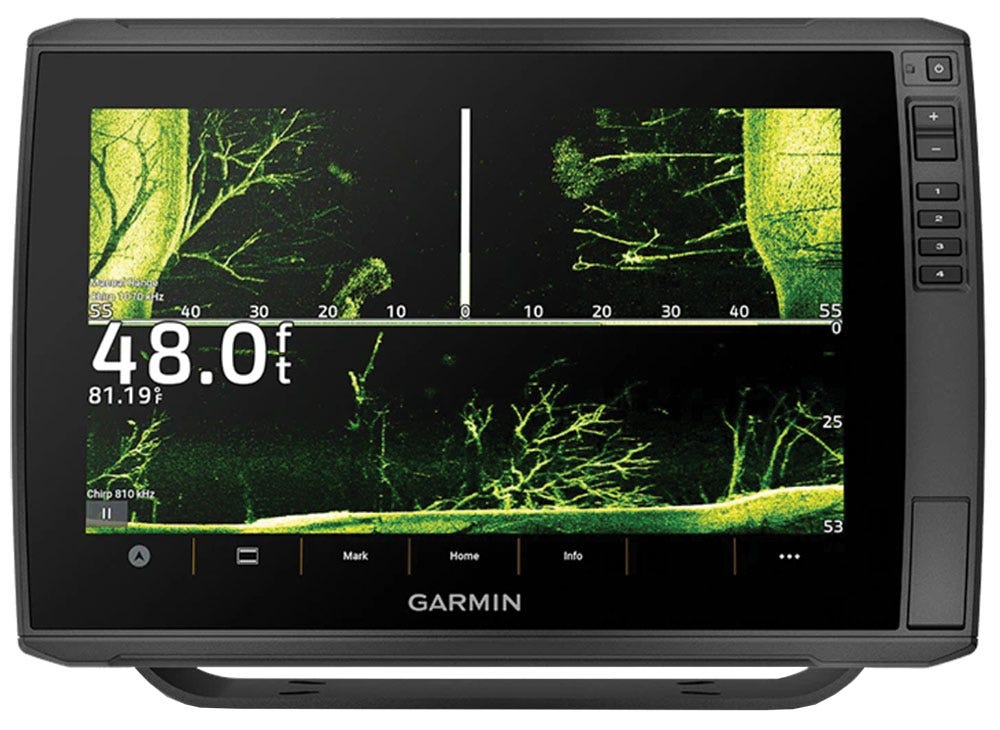

Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

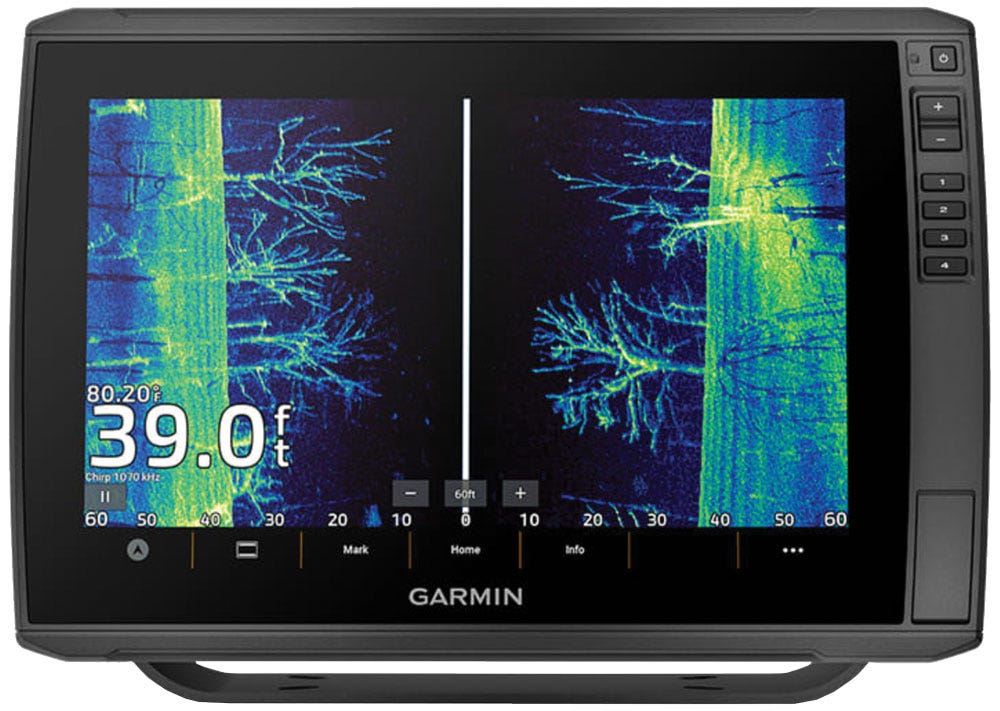

High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.


Experience unparalleled coverage and detail. Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.


Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.


If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information such as sonar3, waypoints and routes with them.



Get improved position accuracy with multi-band GPS


Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.


Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more4.


Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.


The quick-disconnect bail mount lets you quickly install and remove your unit.

1LiveScope™ System sonar transducer sold separately
2Via one-to-one unit wireless connection only
3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 Chartplotters
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series Chartplotter


pdf download icon  Owner's Manual


pdf download icon  Installation Instructions



  • Dimension: 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
  • Weight: 1.8 kg (4 lbs)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display Size: 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps & Memory

  • Accepts Data Cards: 2 microSD Cards
  • Waypoints: 5000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100


  • GPS: Yes
  • GLONASS: Yes
  • Galileo: Yes
  • BeiDou: Yes
  • Has built-in receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports multi-band, multi-constellation GPS: Yes

Built-in maps

  • Includes Garmin Navionics+™ Australia & New Zealand Mapping
  • Built-in Auto Guidance+ Yes
  • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
  • Tide tables: Yes (see Additional)

Optional map support

  • BlueChart g3 Yes
  • BlueChart g3 Vision Yes
  • Garmin Navionics+™ Yes
  • Garmin Navionics Vision+™ Yes
  • TOPO 100K Yes
  • Standard Mapping  Yes
  • Garmin Quickdraw Contours Yes

Chartplotter Features

  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link™ compatible radios: Yes
  • ActiveCaptain Mobile Planning Compatible: Yes
  • Sailing Features: Yes

Electrical features

  • Power Input: 9 to 18 Vdc
  • Typical current draw at 12 Vdc: 2.3 A
  • Maximum current draw at 12 Vdc: 5 A
  • Maximum power usage at 10 Vdc: 34 W

Sonar Features

  • Displays sonar: Yes
  • Power output    600 W
  • Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü: Built-in 260/455/800/1000/1200 kHz
  • SideVü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ sonar: Yes
  • LiveScope: Yes


  • NMEA 2000® ports: 1
  • Garmin Marine Network Ports: 2 (large connector)
  • 12-pin transducer ports: 12-pin scanning sonar
  • ANT+ (Connectivity) Yes
  • Garmin Wi-Fi network (local connection) Yes

In The Box - With transducer

  • ECHOMAP Ultra 105sv
  • GT56UHD-TM transducer
  • Charging/data cable
  • Bail Mount With Quick Release Cradle
  • Protective sun cover
  • Hardware
  • Documentation
