Raymarine AR200 Augmented Reality/GPS Antenna

RRP: $1,039.00

Be the first to review this product

Our Price $949.00

Cat.No:

46114

Sup. No.

E70537

To order for delivery, please contact your local Mail Order Department as this item is currently out of stock online.

This item is currently out of stock online.

To order, please contact your local Special Order Delivery Department as this item is currently out of stock online.

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Put your binoculars away! Make faster and smarter navigational decisions with Augmented Reality video overlay.

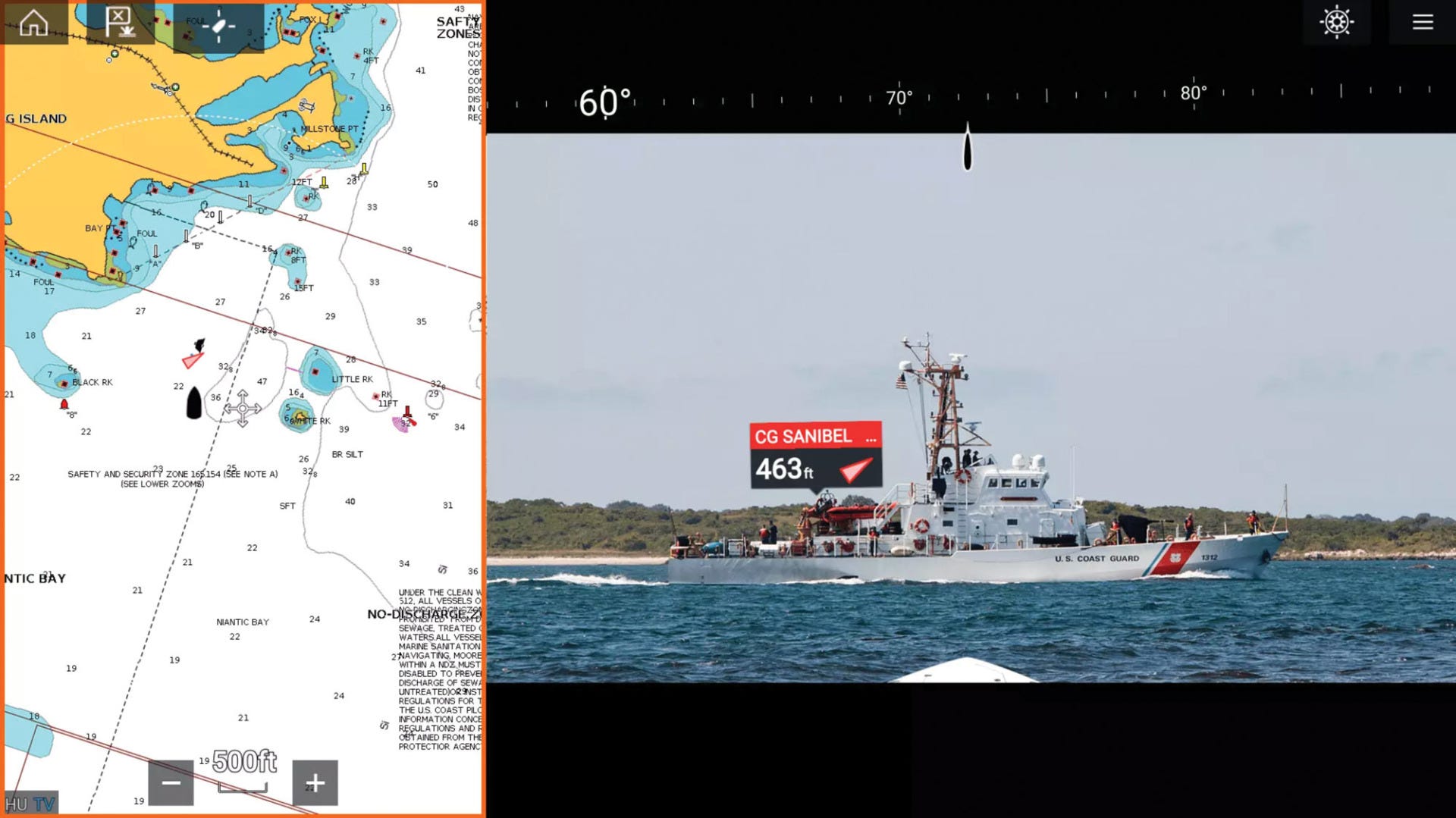

When coupled to an Axiom or Axiom Pro display with a Raymarine Cam210/220 camera, the AR200 antenna will be able to overlay live navigation information through your on-screen camera feed.

Waypoints, AIS targets/hazards (With AIS Connection) and major chart objects are displayed with clear visibility and range.

The AR200 is a unique marine sensor and video stabilization module consisting of a GPS (GNSS) receiver and an Attitude and Heading Reference System (AHRS) sensor.

The AR200 provides GPS position, compass heading, pitch, and roll data to Axiom chartplotters.

Combined with a compatible marine camera, the AR200's video stabilization capabilities enable ClearCruise™ Augmented Reality features available on Axiom chartplotters.

ClearCruise AR Features

Make Smarter Decisions

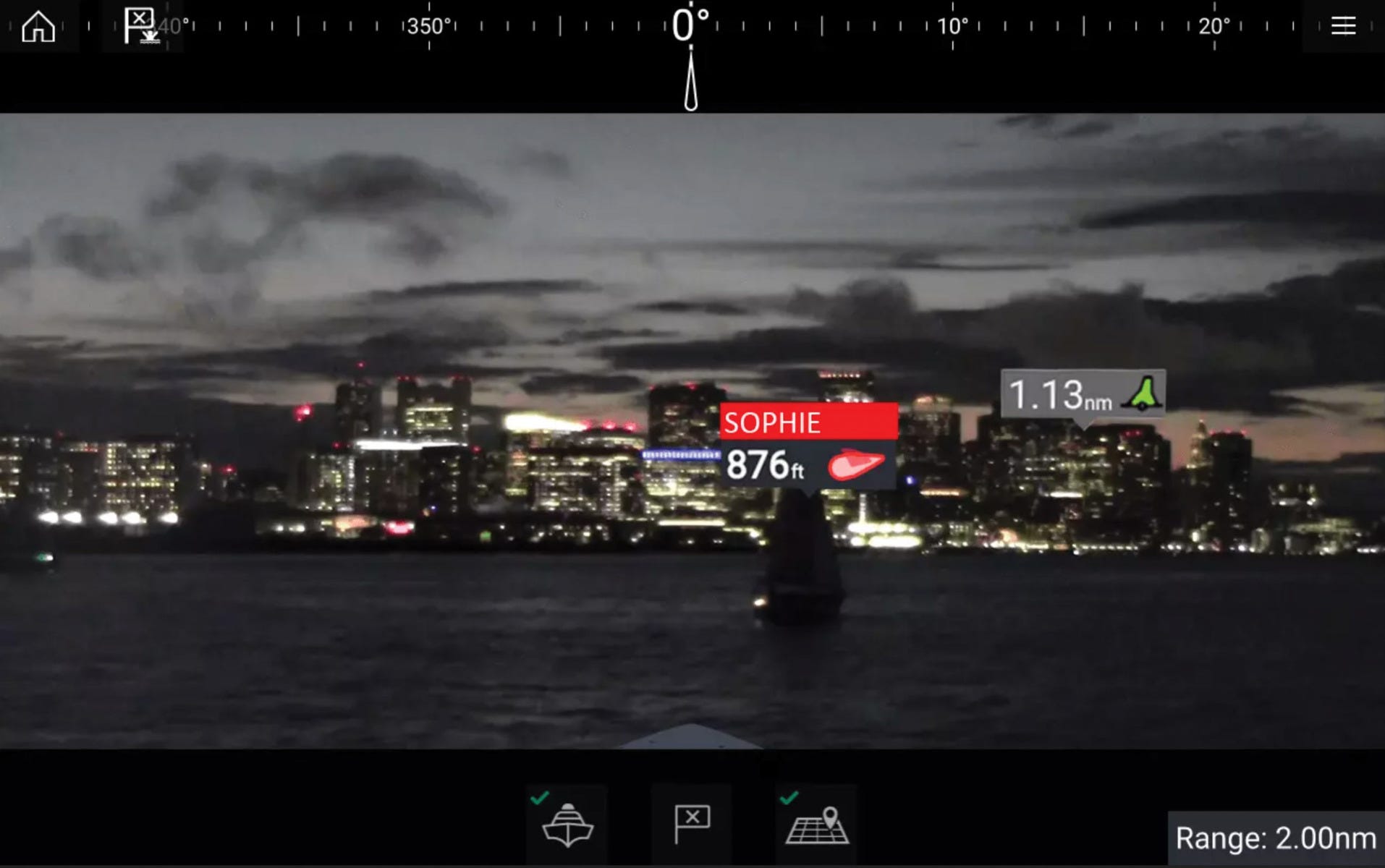

See critical navigation objects overlaid on HD video. Surrounding AIS-equipped vessel traffic and charted navigation aids are clearly identified with rich graphics on a live, dynamic video image.

Recognize and Respond to Nearby Marine Traffic

Colour-coded labels provide instant identification, status, and risk-assessment Live AIS Targets. ClearCruise AR provides positive identification of AIS-equipped vessels on the horizon.

Understand Complex Navigational Situations

Major chart objects are identified for instant, heads-up recognition. ClearCruise AR technology shows you visually where your saved waypoints and marks are located.

See your waypoints in the real world

Visualize nearby marks and waypoints for easy navigation. ClearCruise AR technology makes it easy to pick out the buoys marking the edges of the safe channel on a hazy day.

Make Smarter Decisions with ClearCruise Augmented Reality

ClearCruise™ AR (Augmented Reality) brings enhanced on-water awareness to Raymarine’s family of Axiom® chartplotters. With ClearCruise AR, you can make smarter decisions with physical navigation objects overlaid directly on Axiom’s high-definition video display.

Specifications

Specifications
Specification	GNSS (GPS) receiver Geodetic Datum: WGS-84 Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan) Channels: Simultaneously track up to 28 satellites GNSS (GPS) satellite system compatibility: GPS, GLONASS, Galileo ready, Beidou ready Sensitivity: Cold start = -147 dBm, Re-acquisition = -160 dBm, Tracking = -164 dBm Signal acquisition: Automatic Differential acquisition: Automatic Operating frequency: 1574 MHz to 1605 MHz Update rate: 10 Hz Position accuracy with SBAS (95%) < 5 m Time to first fix from hot start: < 45 seconds Time to first fix from Cold start: < 2 minutes (< 60 seconds typical) Position accuracy without SBAS (95%) < 15 m Speed accuracy (95%) < 0.3 AHRS Magnetic compass accuracy: Static = ≤ 1° RMS, Dynamic = ≤ 3° RMS AHRS (Attitude Heading Reference Sensor) 3-Axis digital accelerometer, 3-Axis digital compass, 3-Axis MEMS Gyro digital angular rate sensor Heading, Pitch, Roll and Rate of Turn update rate: 10 Hz Pitch, Roll and Yaw accuracy: ≤ 1° Environmental Waterproof rating: IPx6, IPx7 Storage temperature range: -25° C to +70° C Operating temperature range: -25 ° C to +55° C Relative humidity: 0.93 Conformance Standards: EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance Level 2, RoHS Directive 2011/65/EU, WEEE Directive: 2012/19/EU Physical Dimensions: Diameter: 108.48 mm (4.27 in), Depth: 41.57 mm (1.64 in) Power Operating voltage range: 9 V dc to 16 V dc (protected up to 32 V dc) Power consumption: 30 mA Max Nominal supply voltage: 12 V dc (Supplied by the SeaTalkng network) LEN (NMEA 2000 Load Equivalency Number) 1 What's in the box? Mounting trim (Top) Small sealing ring AR200 3 x large bulkhead bracket fixings (Pan head pozi DIN7981 ST 3.9x22 C Z A4 Stainless steel) Mounting tray (Bottom) 4 x small surface mount fixings (Pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel) Bulkhead (Wall) bracket Large sealing ring Documentation 6 m (19.69 ft) SeaTalkng (White) cable
